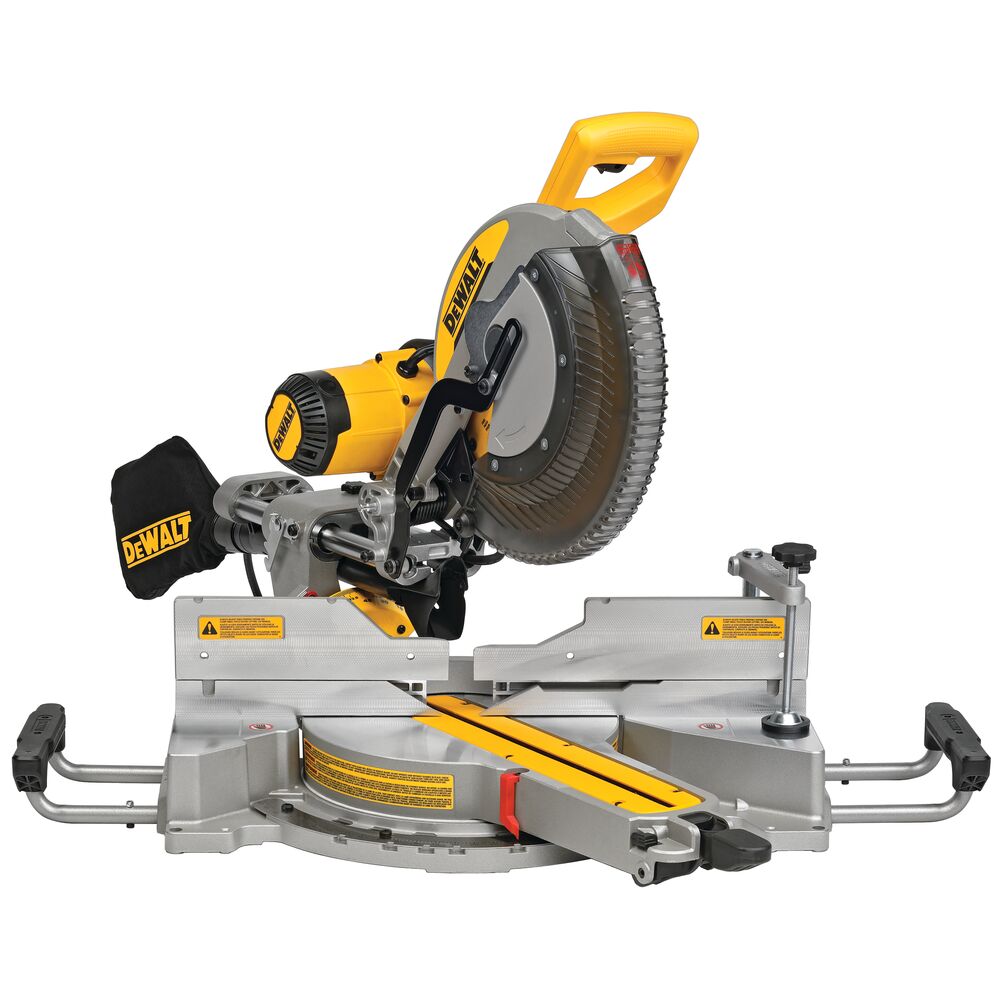

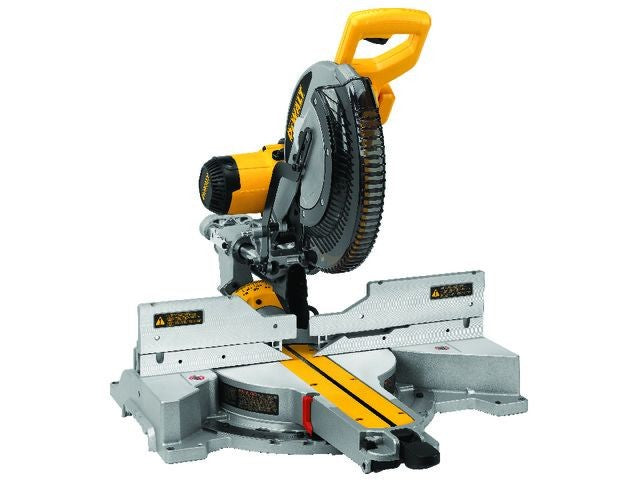

DEWALT Sliding Compound Mitre Saw 305mm | DWS780-QS
Description
Dewalt - 1675w 305mm Compound Slide Mitre Saw
Features:
- Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life for the tool
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49Degrees left and right
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0Degrees - 50Degrees left and 0Degrees - 60Degrees right
- Long life Accuracy in Table and Fence Design
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
- Outstanding dust control and deflection away from cutting area
- Electronic speed control for adjusting cutting speed when cutting materials other than wood
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
- Power Input: 1675 Watts
- Power Output: 960 Watt
- Blade Speed: 1900 - 3800 rpm
- Blade Diameter: 305 mm
- Blade Bore: 30 mm
- Bevel Capacity: 49/49Degrees
- Mitre Capacity [right/left]: 60/50Degrees
- Cutting Capacity at 90Degrees/45Degrees (W x H): 211 x 112 mm
- Cutting Capacity at 90Degrees/90Degrees (W x H): 303 x110 mm
- Cutting Capacity at 90Degrees/90Degrees (W x H): 345 x 76 mm
- Cutting Capacity at 45Degrees/90Degrees (W x H): 268 x 63 mm
- Cutting Capacity at 45Degrees/90Degrees (W x H): 345 x 44 mm
- Cutting Capacity at 90Degrees/45Degrees (W x H): 244 x 76 mm
- Max. Cutting Capacity at 45Degrees/45Degrees: 212 x 76 mm
- Max. Depth of Cut [Saws]: 170 mm
- Hand/Arm Vibration - Cutting Wood: - Uncertainty K 1 (Vibration): 1.5 m/square
- Sound Power: 100 dB(A)
- Sound Power Uncertainty: 3 dB(A)
- Sound Pressure: 93 dB(A)
- Sound Pressure Uncertainty: 3 dB(A)
What's in the box
x 1 DEWALT 1675w 305mm Compound Slide Mitre Saw
x 1 High Quality 60 tooth blade
x 1 Blade spanner
x 1 Dust bag
x 1 Material Clamp
